Lockable Gas Springs

  • Lockable Gas Springs
Lockable Gas Spring
  • Suspa Gas spring (Made in Germany)
  • Design for ergonomics and comfort.
  • Application:
    1. Reclining: coach seat, office chair, hospital bed, wheelchair.

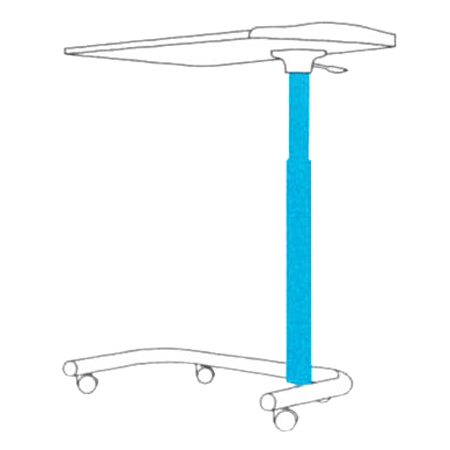

    2. Height adjusted: table, dest, medical, health, and fitting equipment.
  • 50,000 life cycles
  • User notice.
Favorite Share Back to List Inquire Gas Spring PREV Furniture Gas Spring NEXT
Product Description




Product Specification

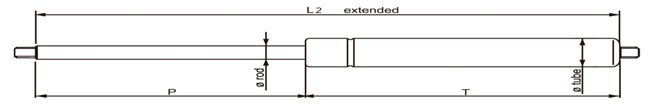

TYPE (SUSPA) EL1 EL2 HY1 HY3 HY4 HY6
φtube(mm) 22 28 22 28 28 28
φrod(mm) 10 10 10 10 10 10
Force F1(N) 80-800 80-1000 80-800 80-1000 80-1000 50-400
L2 max 740 890 850 1100 850 1000
L2 min 90 90 105 300 110 130
Thread on tube side M8*1.25 M8*1.25 M8*1.25 M8*1.25 M8*1.25 M8*1.25

◎1KG=9.8N
◎Rod ends with U701 End Fitting and switch lever

Inquiry option

(1) Origin
